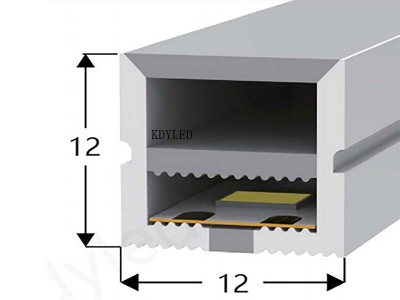

- ULTRA SLIM: very tinny and low profile design for working inside narrow space like aluminum channel, groove on furniture and more

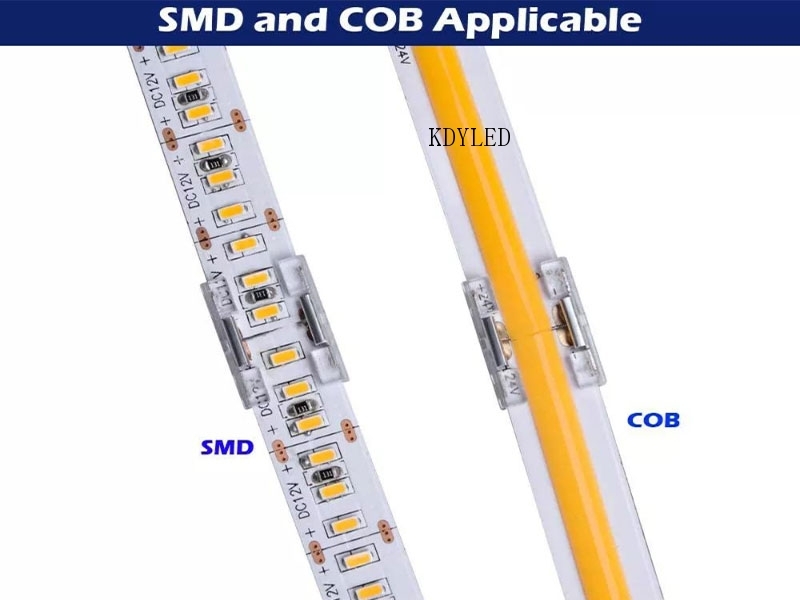

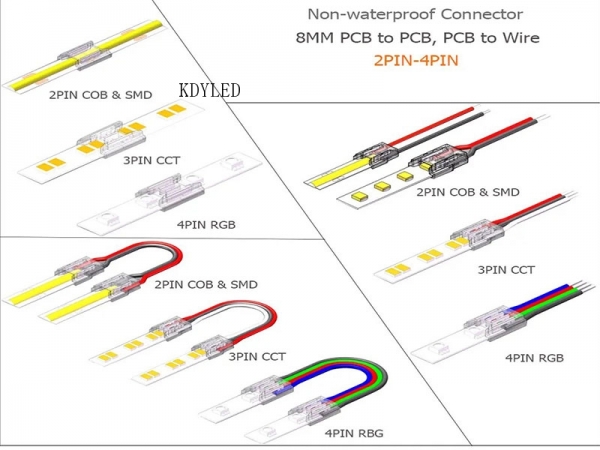

- WIDE APPLICATION:(1 time use) best middle connector for 8mm single color flexible COB light strip as well as common SMD flex tape light with different LED quantity ( for example 30,60,90,120,240,360,480,720 LEDs per meter and more)

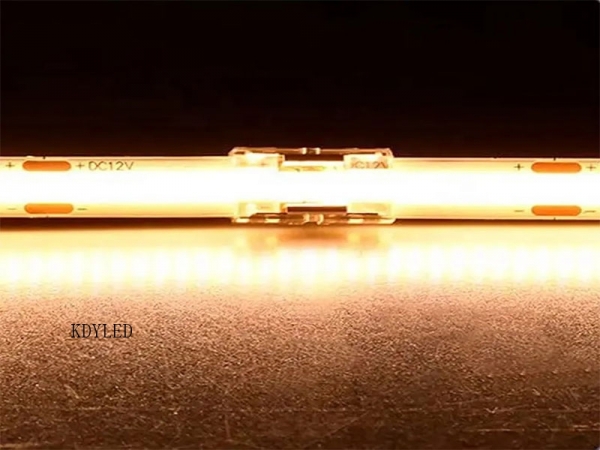

- SEAMLESS CONNECTION: real gapless connection with conductors putting at both side of led row and open case. This connector doesn‘t break the continuity of led light queue so it won‘t cast shadow on diffuser or leave any dark area on lighting surface
- BIG CURRENT: Support Max DC3~24V / 5.5A (need strip light pcb can bear 5.5A) with help of thick conductor. If pcb copper is thin, don‘t add 5.5A to your strip light, because your strip light will burn

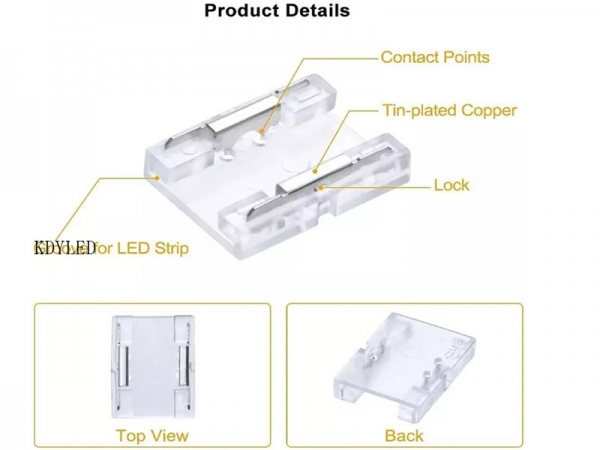

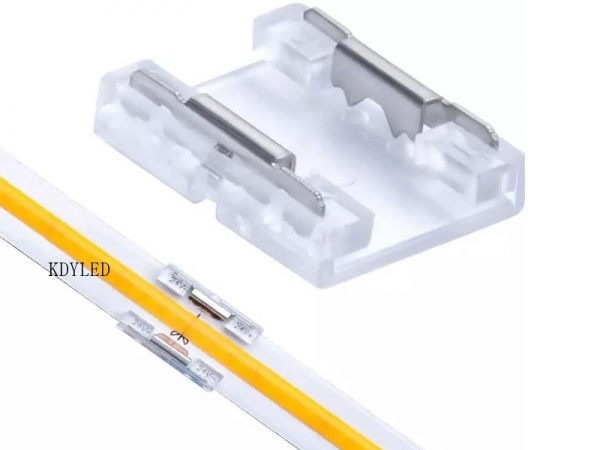

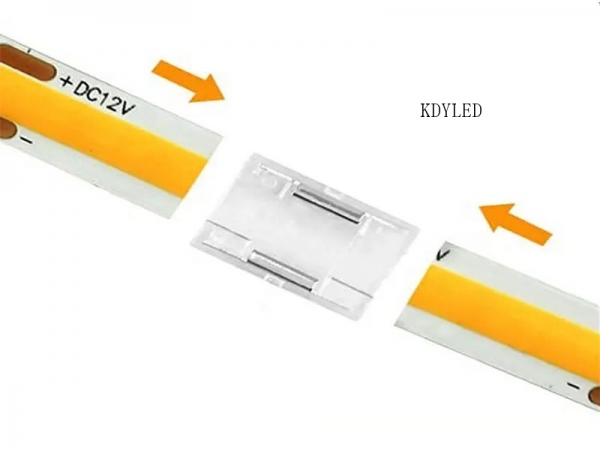

- FIRM FIXING: Pierce to contact (IDC connection) technology,conductor will penetrate pcb in order to conduct current between two segment of strip light and fix them. Only breaking pcb can drag strip light out after fixing
