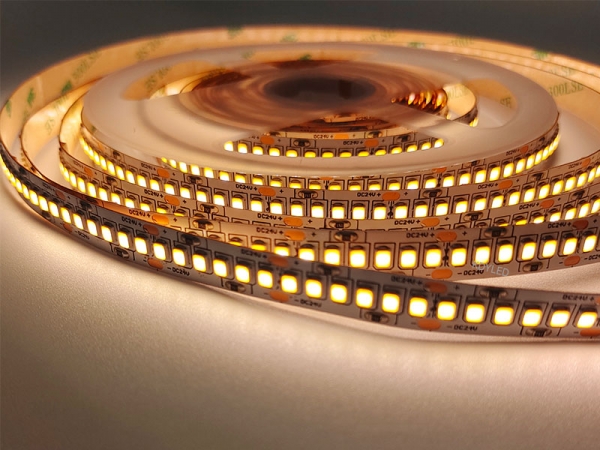

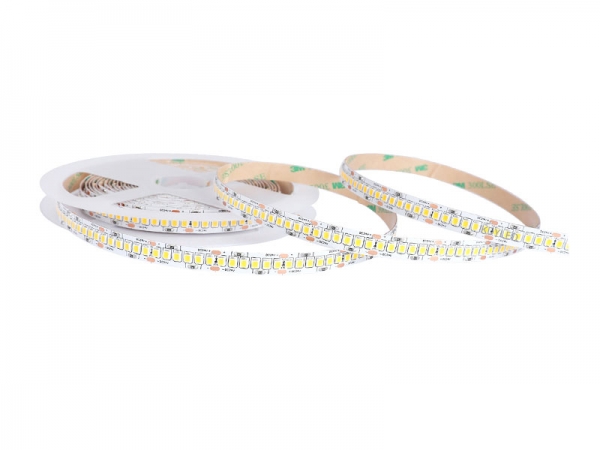

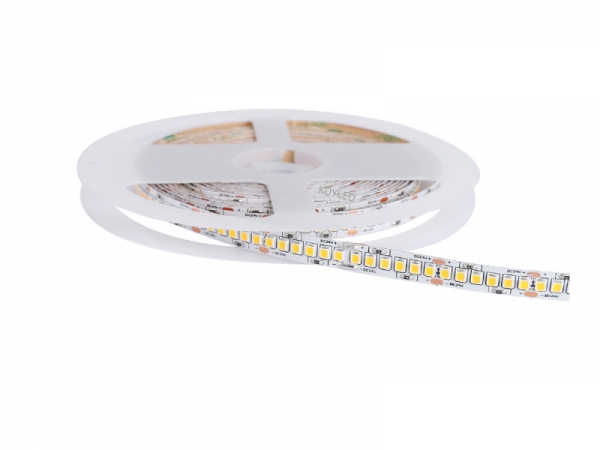

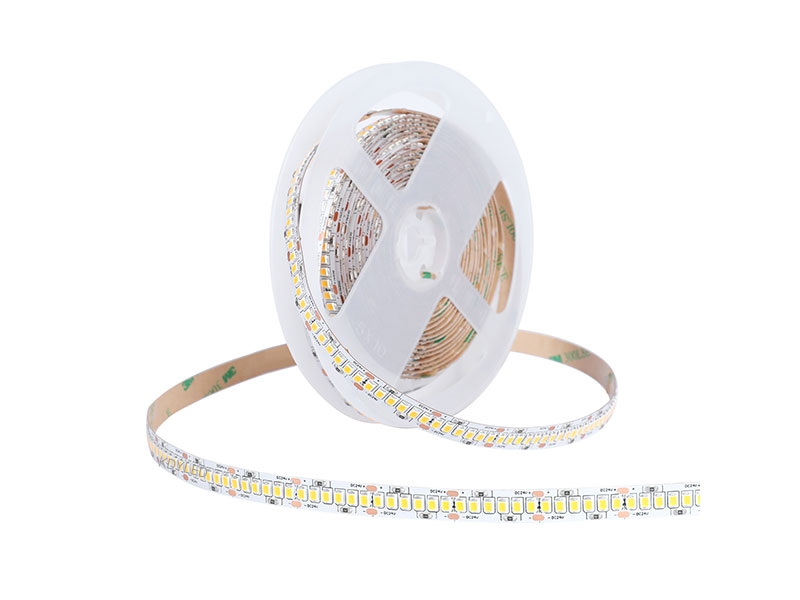

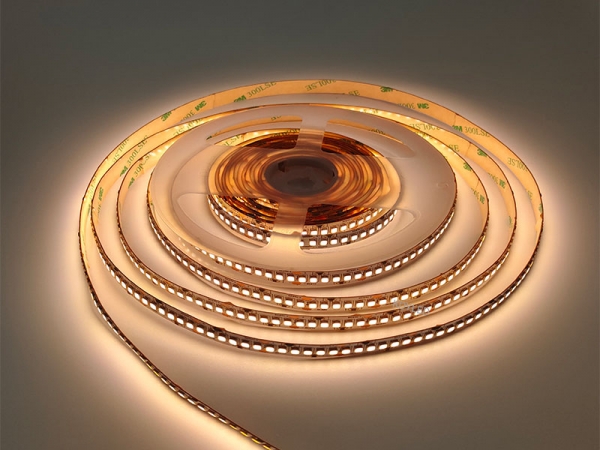

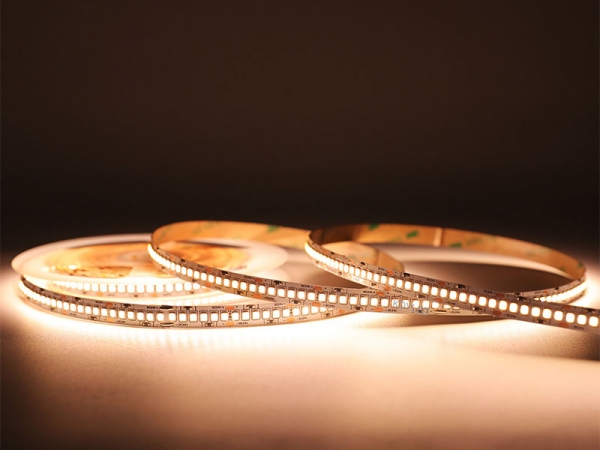

SMD2835 LED Strip Light


                                  Parameter Table



PCB color	White PCB	Installation	wiht 3M adhesive back ,easy for installation
Package	5m/reel. with anti-static bag,or    customized	Certification	CE/RoHS
Warranty	3-5 years	IP rate	IP20/IP65/IP67/ IP68



                                        Characteristics

1. LED source: 24-26lm/LED high brightness and low decline (less than 3%) after 3000hours working.
2. Modular design: every 3LEDs or 6LEDs as a module and work independently.
3. Voltage: 12V/24VDC input Voltages can support longer LED strip connection.
4. Working current: 90-95% to keep the lumen efficiency safely, ≤ 15º C temperature rise.
5. FPC size: 8mm/10mm width FPC and smaller components, LED stripe light is more flexible.
6. Support customized size: you can cut the LED strips into the size you want (support customized length).
7. Dimming support: by manual or IR, be able to adjust the LED stripes brightness.
8. Lifespan: our LED strip 2835 have more than 50000hours working life with 3 years warranty.
9. Easy Installation: 3M tape on the back of strip light and maintenance free.
10. IP rating: our flexible led strip light have different IP level be able to install in any indoor/outdoor environments (non-waterproof, waterproof)
11. 100% aging line test before packing minimizes the possibility of defective products out of the factory.
12. TUV CE, FCC, RoHS, LM-80 and IEC/EN62471 photobiological safety compliant.
